Black, 4x PCIe, cable management, 850 watts

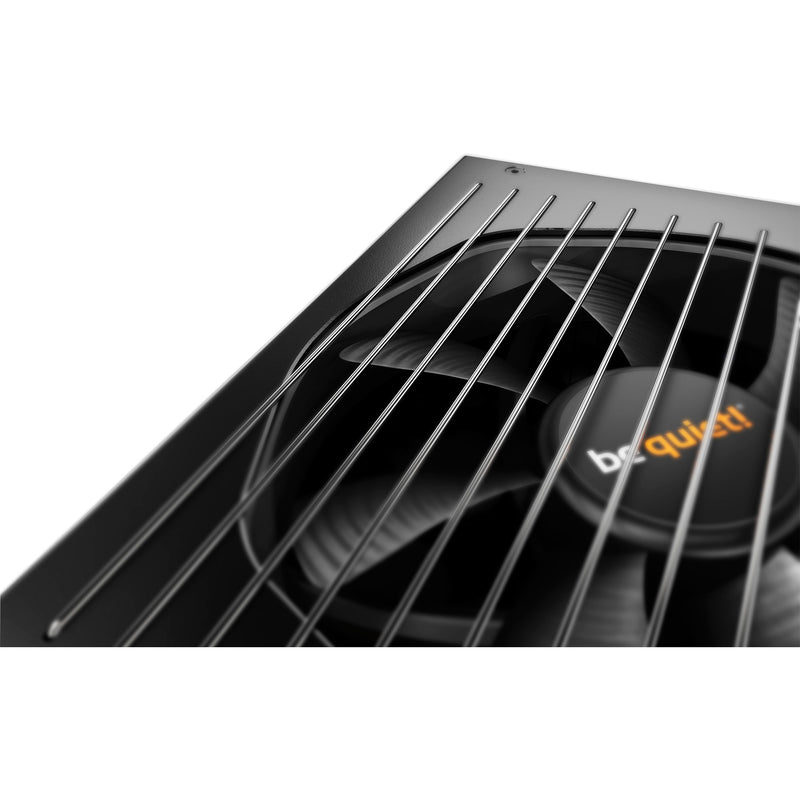

be quiet! Straight Power 11 850W establishes new standards for silent systems without minimal power to compromise. It convinces with numerous high quality performance characteristics, for example: equipped with a 135 mm Siletwings 3 fan almost imperceptible and the incoming air in the shape of a funnel on the power supply of the power supply increases the air flow. The wireless design in the power supply on the CC side increases the cooling and longevity of the components, while the comfortable management of the completely modular cables guarantees maximum flexibility and ease of use. The power supply offers the 80Plus Gold certification with an efficiency of up to 93%, greater adjustment of the voltage and stability thanks to the advanced LLC, SR and DC/DC technology, four high -performance 12 V lines, two PCI Express doors for Powerful Multi-Gpu systems, stable and reliable Japanese capacitors designed for temperatures up to 105 ° C.
| Type |
Computer power supply |
| Color |
black |
| EAN |
4260052185797 |
| Manufacturer n. |
BN284 |
| series |
Straight Power |
| Performance |
In total |
850 W |
|
+12V total |
849 W |
|
+3.3 V/+5 V total |
150 W |
|
Efficiency |
Up to 93% |
|
Input voltage interval |
100-240 Volt |
|
Current input |
5 A A 230 Volt/50 Hz, 10 A A 110 Volt/60 Hz |
| predefined |
ATX12V 2.4, EPS12V 2.9x |
| Project |
ATX |
| Certification |
80 more gold |
| current strengths |
+3.3 V |
25th |
|
+5V |
25th |
|
+12v1 |
21st |
|
+12v2 |
21st |
|
+12v3 |
26th |
|
+12v4 |
26th |
| Correction of the power factor |
Active PFC |
| Switch |
1x power switch |
| connections |
1x atx at 20 pin or 1x atx12v-2.x at 24 pin, 1x 4+4 pin 12v, 1x 4+4 pin 3.5 ", 4x 4 pin 5.25", 4x graphics 6+ 2 pin, 1x 8 pin 12 V, 11 SATA A 15 PIN |
| Cable |
Cable management |
YES |
| cooling |
Number of fans |
1 135 mm fan |
|
regulation |
Controlled temperature |
| volume |
9.7 db (a) at 20% load, 10.7 dB (a) at 50% load, 25 dB (a) 100% load |
| Protective functions |
Overgoing protection (OCP), over -intention protection (OVP), under -intention protection (UVP), overload protection (OLP/OPP), short circuit protection (SCP), overheating protection (OTP) |
| Size |
Width: 150 mm x height: 86 mm x depth/length: 170 mm |
| Weight |
3.4 kg |
